Description:

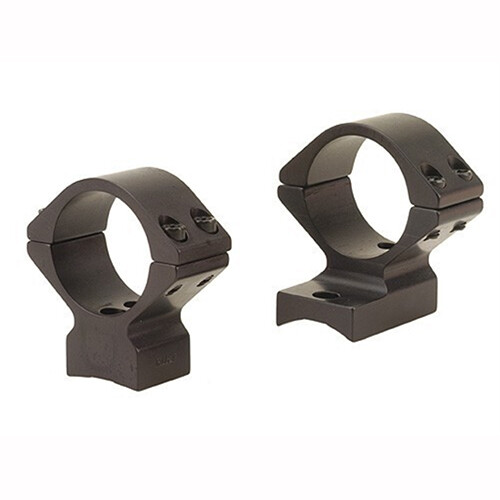

Made in America, these Remington 700 Scope Mounts made by Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Remington 700 rifles, to include models 721-722-725 and 40X. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.
| Ring Height | Rear Height | Front Height | Available for Main Tubes | Weight (per set) |
| Extra-Low | .418″ | .300″ | 1″ / 30MM | 2.0oz / 2.4oz |
| Extra-Low Extended | .418″ | .300″ | 1″ / 30MM | 2.0oz / 2.4oz |
| **Low | .518″ | .400″ | 1″ / 30MM | 2.2oz / 2.5oz |
| Low Extended | .518″ | .400″ | 1″ / 30MM | 2.3oz / 2.6oz |
| Medium | .618″ | .500″ | 1″ / 30MM / 34MM | 2.3oz / 2.6oz / 3.0oz |
| Medium Extended | .618″ | .500″ | 1″ / 30MM | 2.4oz / 2.7oz |
| High | .718″ | .600″ | 1″ / 30MM / 34MM | 2.5oz / 2.9oz / 3.2oz |
| High Extended | .718″ | .600″ | 1″ / 30MM | 2.6oz / 3.0oz |
| Extra-High | .818″ | .700″ | 1″ | 2.7oz |
| Extra-High Extended | .818″ | .700″ | 1″ | 2.8oz |
1 The height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location
2 Hole spacing measured center to center.
3 Extended rings are typically used with long or magnum length actions when mounting a scope with a shorter main tube length. Front mount is offset by approximately 3/8 of an inch.
.............
